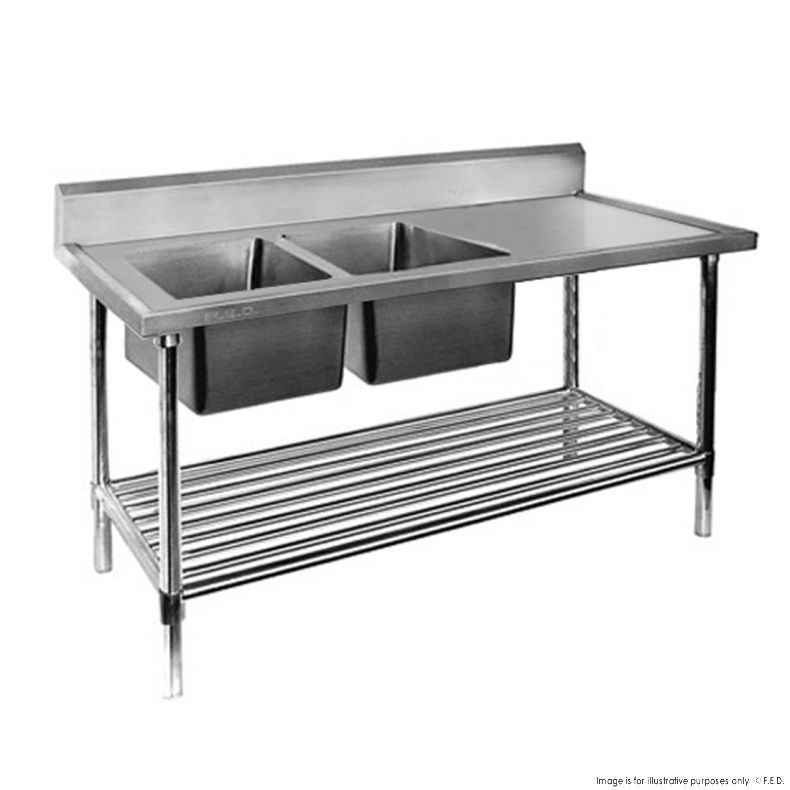

Modular Systems DSB6-1500L/A Double Left Sink Bench with Pot Undershelf

All Stainless DSB6-1500L/A  Double Left Sink Bench with Pot Undershelf
1500 mm wide
Free optional leg brace instead of pot shelf, please specify leg brace on order if required
• Bowl size 400mmW×400D×300H; 90 mm Ø drain hole
• 600 mm deep × 900 mm high
• Specially designed for quick & simple assembly
• Comes with instruction manual & tools
• Supplied flat-packed for ease of transport
• 4 legs per bench – 2100 & 2400 mm wide benches have 6 legs
• 1.2 mm S/S
• 15 mm wet edge
• Centre bowl positioning
• Bowls are fully welded, polished inside & out
• 90 mm Ø drain hole
Splashbacks
• Stainless Steel backed • 150 mm high; 40 mm thick
• Bevelled • fully enclosed
Legs
• 1.2 mm S/S; 42 mm Ø
• Fully adjustable S/S polished disc feet that match the legs perfectly
• Castor kits available (lockable)
Benchtops
• 1.2 mm material; SUS304 (18/8)
• Lined with XPS board, 15 mm thick & S/S panel
• Special S/S ‘U’ channel reinforcements under
– As the bench size increases so does the number of channels
Pot Undershelves
• 1.2mm S/S (18/8)
• Outer frame tubes: 38 Ø 1.2 mm tube
• Inner tubes: 25 Ø 1 mm tube with 40 mm spacing

2 Years Parts only Warranty

Width (mm) 1500
Depth (mm) 600
Height (mm) 900
Packing Width (mm) 670
Packing Depth (mm) 1570
Packing Height (mm) 530

Brand

MODULAR SYSTEMS

spec sheet

DSB6-1500L_A_Double_Left_Sink_Bench_with_Pot_Undershelf_
